Product Introduction

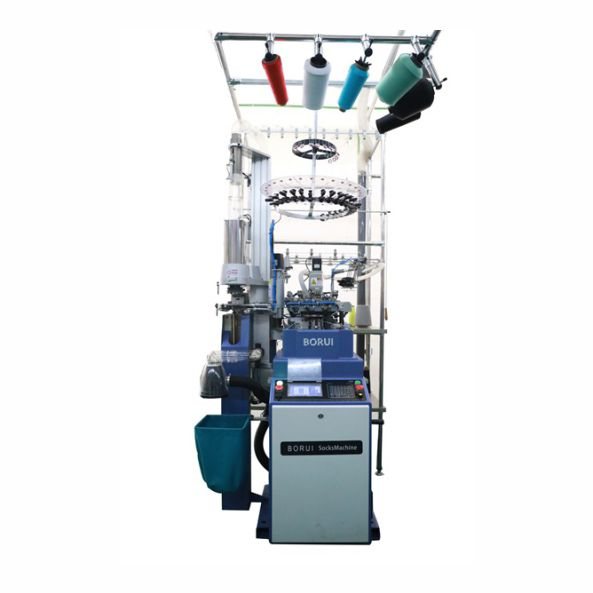

Socks machines with close toe device
B R P 2 0 、B R P 2 1 、B RT 2 1 、B RST 2 1
BORUI series -BRP20,BRP21,BRT21,BRST21 is high production single cylinder socks machine equip with close toe device enables a typical classic
linking .
Our machine can produce , linking the toe and reverse the socks at the same time it’s knits a new sock.Which save time, cost and eliminate the work stage that provide strain on the eyesight of employees during hand-sewing process.
The automated device is situated at the side of the knitting machine,it downloads the sock from the machine,after completion of the knitting operation,and it transfers the sock to the linking device ,where it is sewn loop by loop.The sock is turned inside out ,so that the linking remains on the inside of the sock, resulting in a perfect traditional-looking linking.
After being sewing,the sock already reversed to the right side,is removed from the machine and is ready for the next boarding operation.
Technical Characteristics
1. High-tech computer control system with High resolution touch screen ,simple to use with low cost maintenance.
2. The machine use standard needles like regular machine.
3. Easy to pass from plain to terry .
4. Stitch adjustment by high precision step motor with automatic stiffening.
5. Pattern 6 colors per course with total of 23 yarn fifingers for 3.5" plain and 3D effect
6. Pattern 7 colors with total of 28 yarn fifingers for 3.75" plain ,terry , selected terry and 3D effect
7. USB port to load program and pattern
8. Big memory store several program and pattern.
9. Circular yarn cutter with step motor and mechanical stop.
10. 2 Elastic yarn fifingers
11. 8 level high speed electronic actuators for needle selection
12. Stepper motor controlled adjustable suction valve.
13. Brushless coaxial main motor.
14. automatic lubrication.
Main Optional Devices
-LGL yarn storage feeder
-BTSR ULTRAFEEDER positive yarn feeders.
-BTSR yarn flflow sensors -Suction fan.
